JIS-P14 13.6X2.4 mm HNBR O ring for AC or other use

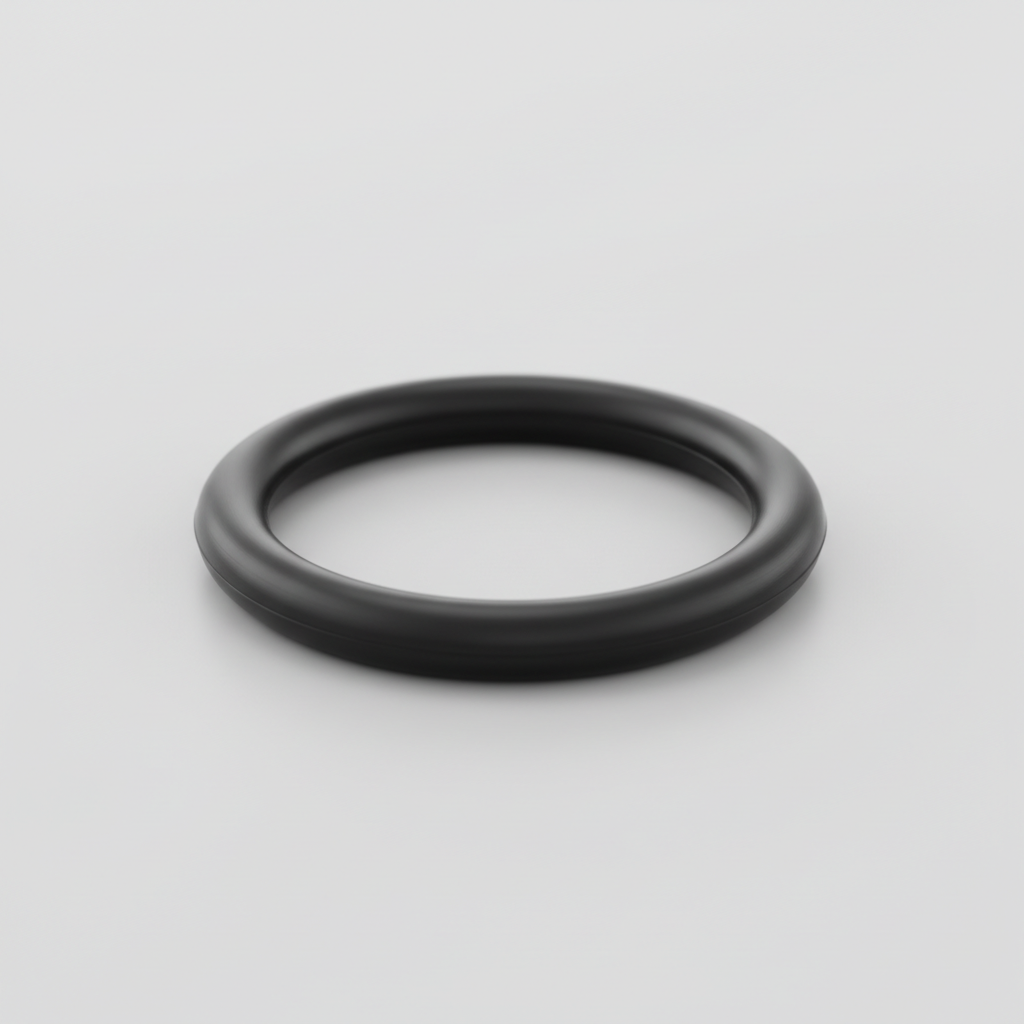

JIS-P14 HNBR O-Ring – 13.6 x 2.4 mm

High-performance O-ring manufactured to JIS B 2401 P14 standard, made from HNBR (Hydrogenated Nitrile Butadiene Rubber) — one of the most durable elastomers available for demanding sealing applications.

Technical Specifications

• Standard: JIS B 2401 – P14

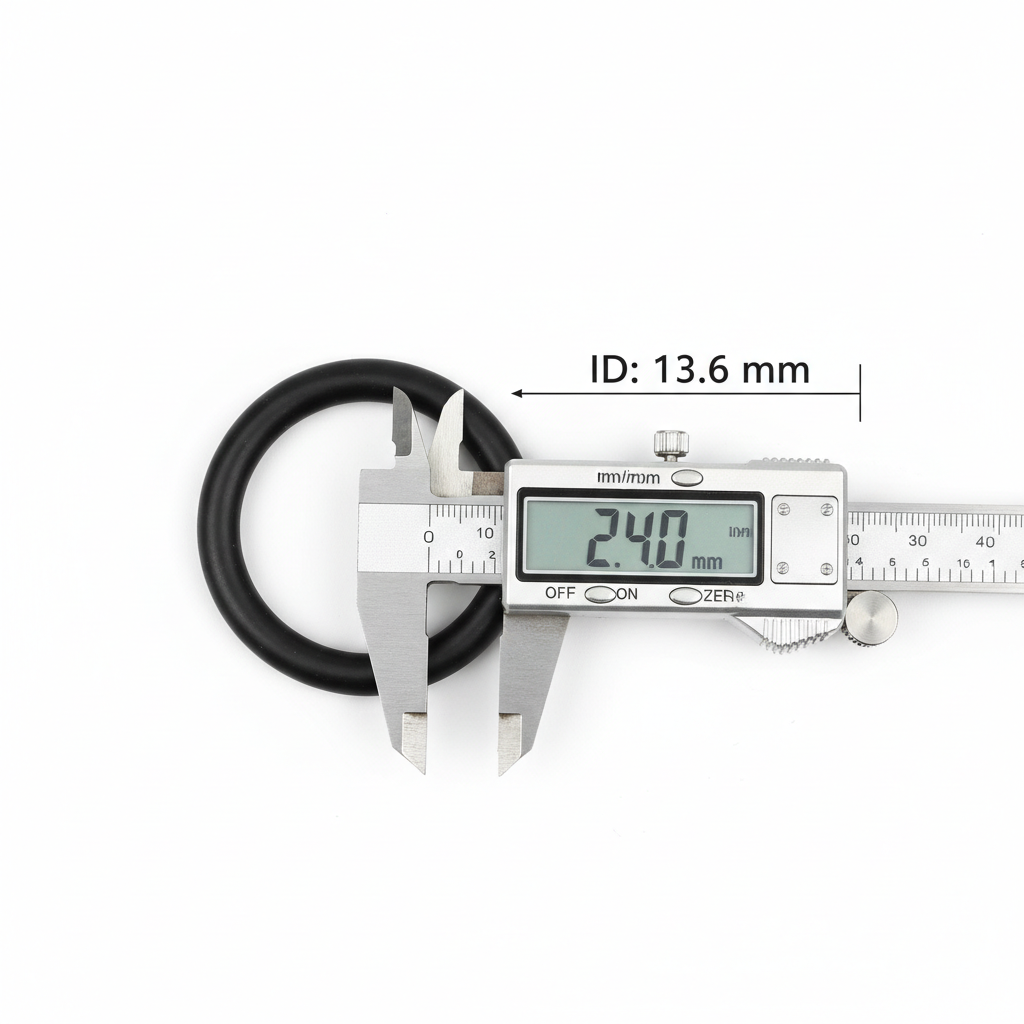

• Inner Diameter (ID): 13.6 mm
• Cross-Section (CS): 2.4 mm
• Material: HNBR (Hydrogenated Nitrile)
• Hardness: ~70 Shore A
• Temperature Range: -40°C to +150°C
• Color: Black

Key Properties

• Excellent resistance to automotive refrigerants R134a and R1234yf
• Superior resistance to heat, ozone, and UV aging
• High mechanical strength and abrasion resistance
• Compatible with mineral oils, synthetic lubricants, and PAG oils used in AC systems

Applications

• Automotive air conditioning systems (compressors, valves, fittings)
• Industrial hydraulic and pneumatic systems
• Chemical processing equipment
• Any application requiring reliable sealing under high temperature and chemical exposure

Sold individually. Please verify dimensions before ordering.
