CJ-A Mechanical Set Retrievable Service Packer

CJ-A Retrievable Service Packer — Full Opening, Compression Set

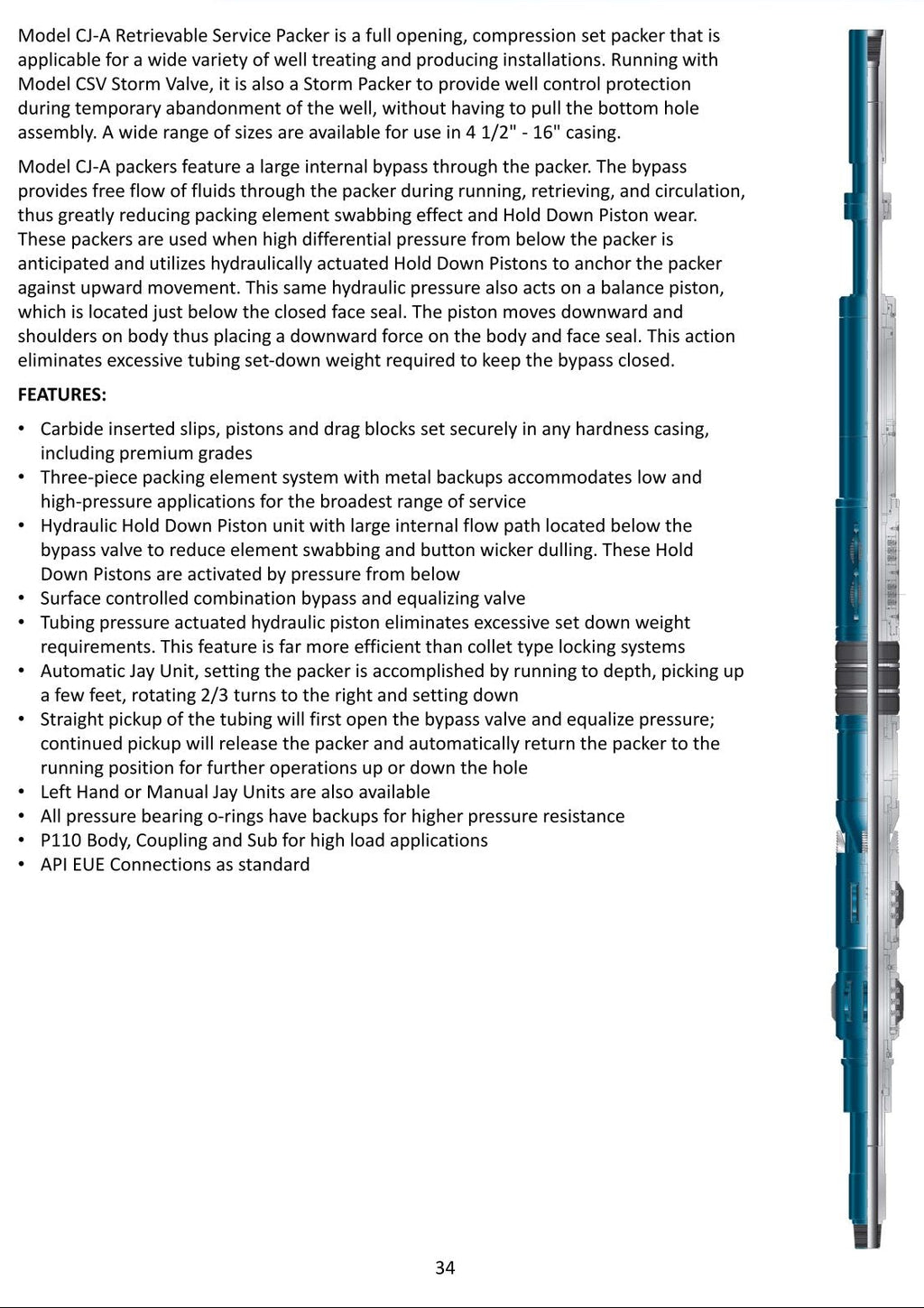

Model CJ-A Retrievable Service Packer is a full opening, compression set packer applicable for a wide variety of well treating and producing installations. Running with Model CSV Storm Valve, it is also a Storm Packer to provide well control protection during temporary abandonment of the well, without having to pull the bottom hole assembly. A wide range of sizes are available for use in 4 1/2″–16″ casing.

Model CJ-A packers feature a large internal bypass through the packer. The bypass provides free flow of fluids through the packer during running, retrieving, and circulation, thus greatly reducing packing element swabbing effect and Hold Down Piston wear. These packers are used when high differential pressure from below the packer is anticipated and utilizes hydraulically actuated Hold Down Pistons to anchor the packer against upward movement. This same hydraulic pressure also acts on a balance piston, which is located just below the closed face seal. The piston moves downward and shoulders on body thus placing a downward force on the body and face seal. This action eliminates excessive tubing set-down weight required to keep the bypass closed.

FEATURES

• Carbide inserted slips, pistons and drag blocks set securely in any hardness casing, including premium grades
• Three-piece packing element system with metal backups accommodates low and high-pressure applications for the broadest range of service
• Hydraulic Hold Down Piston unit with large internal flow path located below the bypass valve to reduce element swabbing and button wicker dulling — activated by pressure from below
• Surface controlled combination bypass and equalizing valve
• Tubing pressure actuated hydraulic piston eliminates excessive set down weight requirements — far more efficient than collet type locking systems
• Automatic Jay Unit: setting accomplished by running to depth, picking up a few feet, rotating 2/3 turns to the right and setting down
• Straight pickup will first open the bypass valve and equalize pressure; continued pickup will release the packer and automatically return it to the running position
• Left Hand or Manual Jay Units are also available
• All pressure bearing o-rings have backups for higher pressure resistance
• P110 Body, Coupling and Sub for high load applications
• API EUE Connections as standard

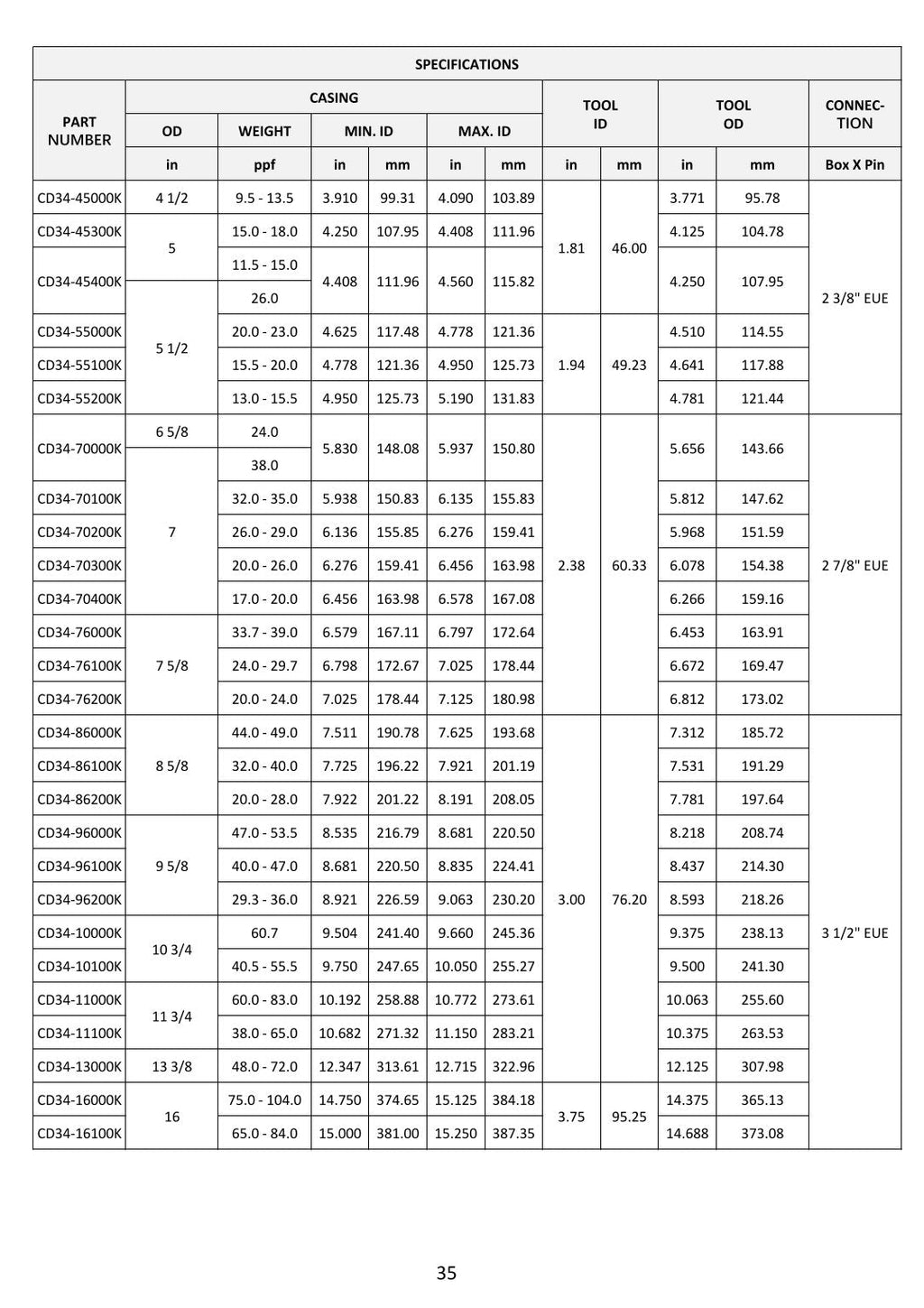

SPECIFICATIONS
