CFH Hydrostatic Retrievable Packer

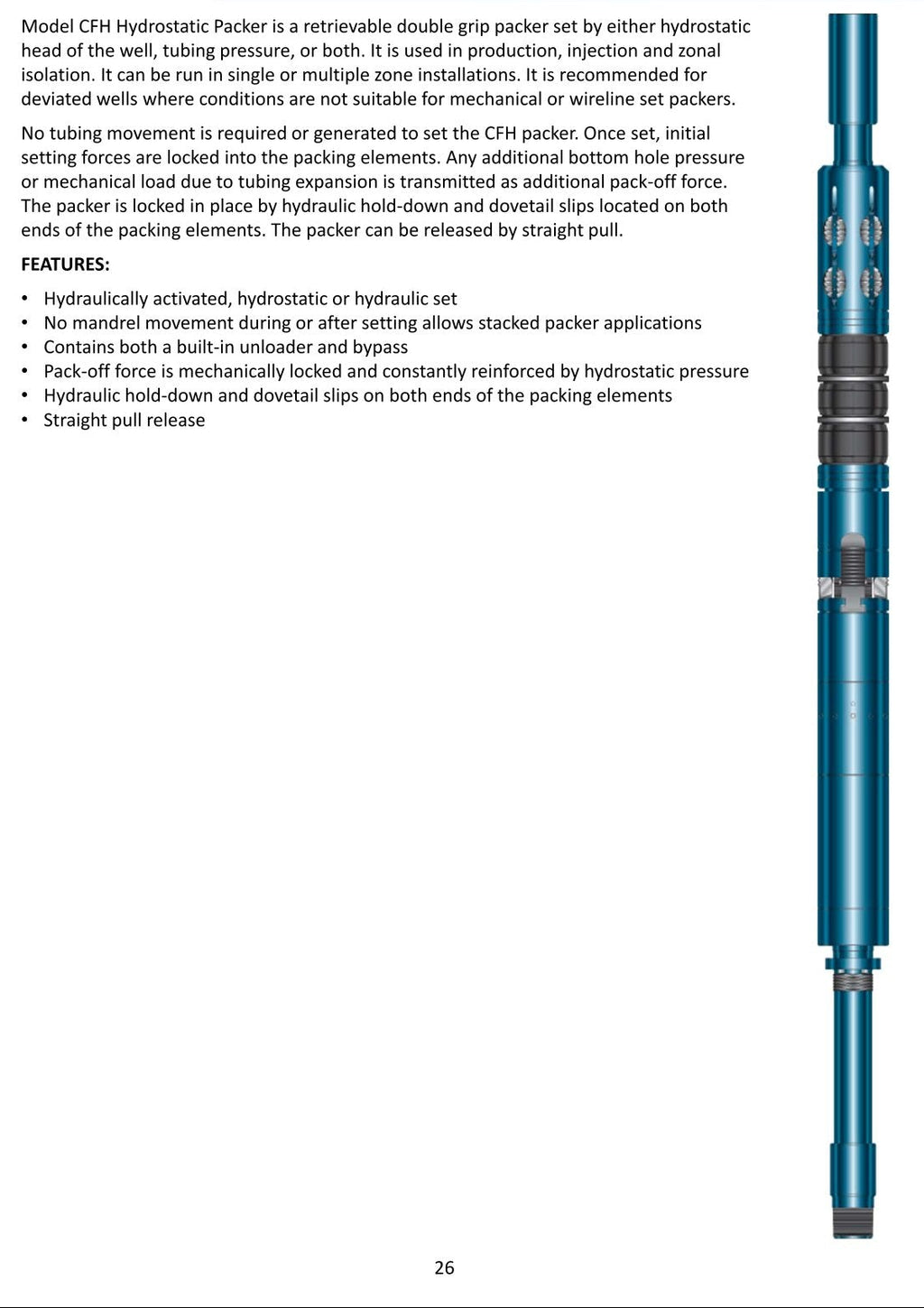

Model CFH Hydrostatic Packer is a retrievable double grip packer set by either hydrostatic head of the well, tubing pressure, or both. It is used in production, injection and zonal isolation. It can be run in single or multiple zone installations. It is recommended for deviated wells where conditions are not suitable for mechanical or wireline set packers.

No tubing movement is required or generated to set the CFH packer. Once set, initial setting forces are locked into the packing elements. Any additional bottom hole pressure or mechanical load due to tubing expansion is transmitted as additional pack-off force. The packer is locked in place by hydraulic hold-down and dovetail slips located on both ends of the packing elements. The packer can be released by straight pull.

FEATURES

Hydraulically activated, hydrostatic or hydraulic set
No mandrel movement during or after setting allows stacked packer applications
Contains both a built-in unloader and bypass
Pack-off force is mechanically locked and constantly reinforced by hydrostatic pressure
Hydraulic hold-down and dovetail slips on both ends of the packing elements
Straight pull release

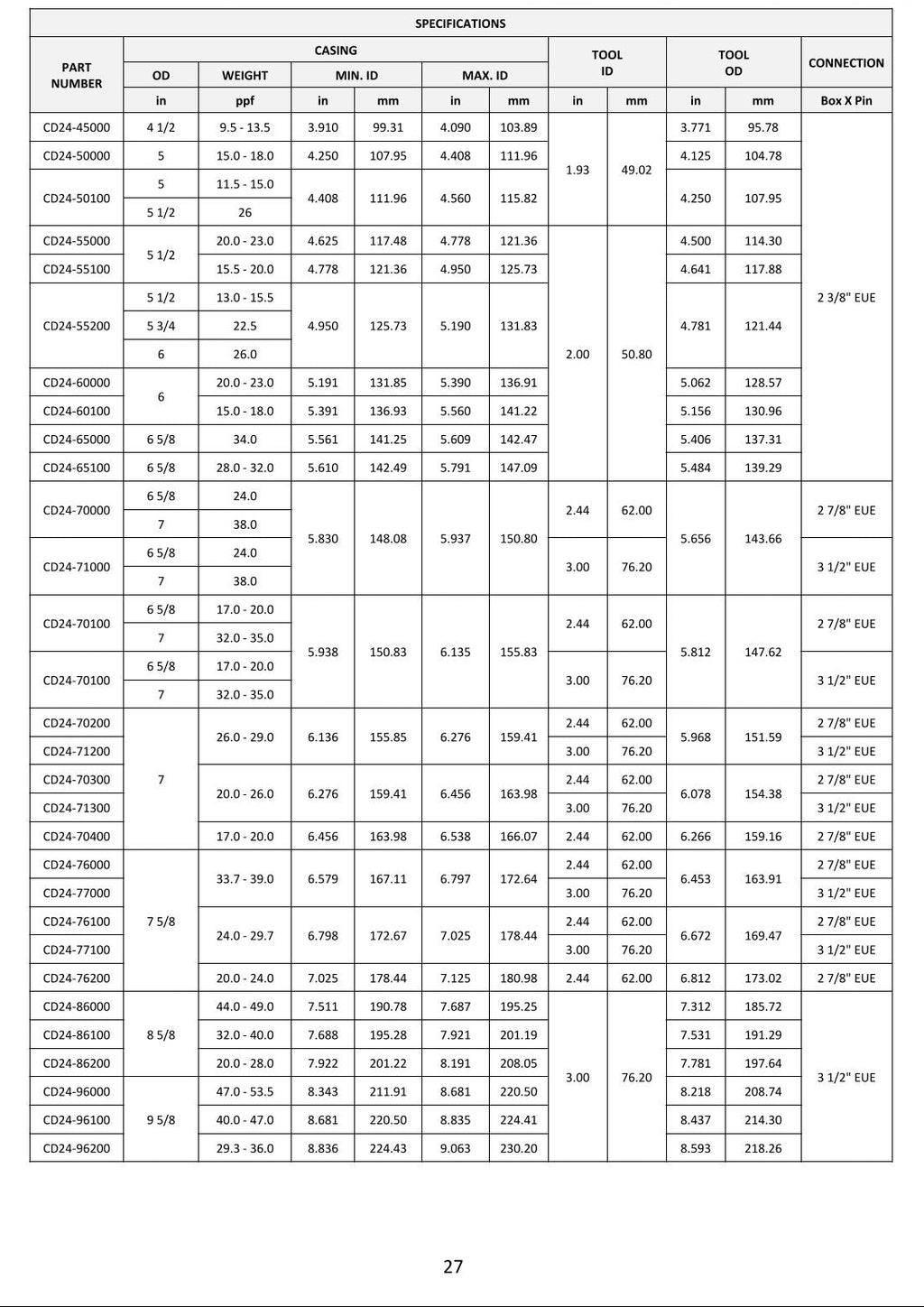

SPECIFICATIONS

Part Number	Casing OD (in)	Weight (ppf)	Min. ID (in)	Min. ID (mm)	Max. ID (in)	Max. ID (mm)	Tool ID (in)	Tool ID (mm)	Tool OD (in)	Tool OD (mm)	Connection
CD24-45000	4 1/2	9.5–13.5	3.910	99.31	4.090	103.89	1.93	49.02	3.771	95.78	2 3/8" EUE
CD24-50000	5	15.0–18.0	4.250	107.95	4.408	111.96			4.125	104.78
CD24-50100	5 / 5 1/2	11.5–15.0 / 26	4.408	111.96	4.560	115.82			4.250	107.95
CD24-55000	5 1/2	20.0–23.0	4.625	117.48	4.778	121.36			4.500	114.30
CD24-55100	5 1/2	15.5–20.0	4.778	121.36	4.950	125.73			4.641	117.88
CD24-55200	5 1/2 / 5 3/4 / 6	13.0–15.5 / 22.5 / 26.0	4.950	125.73	5.190	131.83			4.781	121.44
CD24-60000	6	20.0–23.0	5.191	131.85	5.390	136.91			5.062	128.57
CD24-60100	6	15.0–18.0	5.391	136.93	5.560	141.22			5.156	130.96
CD24-65000	6 5/8	34.0	5.561	141.25	5.609	142.47			5.406	137.31
CD24-65100	6 5/8	28.0–32.0	5.610	142.49	5.791	147.09			5.484	139.29
CD24-70000	6 5/8 / 7	24.0 / 38.0	5.830	148.08	5.937	150.80			5.656	143.66
CD24-70100	6 5/8 / 7	17.0–20.0 / 32.0–35.0	5.938	150.83	6.135	155.83			5.812	147.62
CD24-70200	7	26.0–29.0	6.136	155.85	6.276	159.41			5.968	151.59
CD24-70300	7	20.0–26.0	6.276	159.41	6.456	163.98			6.078	154.38
CD24-70400	7	17.0–20.0	6.456	163.98	6.538	166.07	2.44	62.00	6.266	159.16	2 7/8" EUE
CD24-76000	7 5/8	33.7–39.0	6.579	167.11	6.797	172.64	2.44	62.00	6.453	163.91	2 7/8" EUE
CD24-77000	7 5/8	33.7–39.0	6.579	167.11	6.797	172.64	3.00	76.20	6.453	163.91	3 1/2" EUE
CD24-76100	7 5/8	24.0–29.7	6.798	172.67	7.025	178.44	2.44	62.00	6.672	169.47	2 7/8" EUE
CD24-77100	7 5/8	24.0–29.7	6.798	172.67	7.025	178.44	3.00	76.20	6.672	169.47	3 1/2" EUE
CD24-76200	7 5/8	20.0–24.0	7.025	178.44	7.125	180.98	2.44	62.00	6.812	173.02	2 7/8" EUE
CD24-86000	8 5/8	44.0–49.0	7.511	190.78	7.687	195.25	3.00	76.20	7.312	185.72	3 1/2" EUE
CD24-86100	8 5/8	32.0–40.0	7.688	195.28	7.921	201.19			7.531	191.29
CD24-86200	8 5/8	20.0–28.0	7.922	201.22	8.191	208.05			7.781	197.64
CD24-96000	9 5/8	47.0–53.5	8.343	211.91	8.681	220.50	3.00	76.20	8.218	208.74
CD24-96100	9 5/8	40.0–47.0	8.681	220.50	8.835	224.41			8.437	214.30
CD24-96200	9 5/8	29.3–36.0	8.836	224.43	9.063	230.20			8.593	218.26
